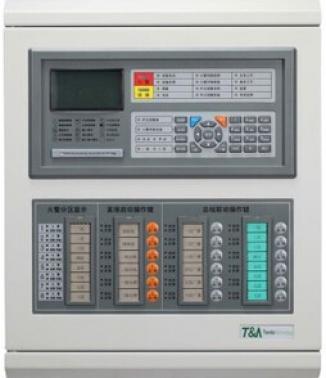

TE1001 electrical fire monitoring equipment

Product introduction

A copy of the 100120 _

Product information

Name: fire monitoring equipment

Model: TE1001

Brand: taihe Ann

Product features

Characteristics: (1) adopting DBUS two bus communication interface; (2) fault automatic monitoring and alarm function; (3) power supply and signal adopts non-polarity design; (4) built-in large capacity data storage, classified storage failure record, alarm, switch machine record and event records, power can remain; (5) fault automatic detection and alarm function; ...

100% will figure

A copy of the 100120 _

An overview of the

TE1001 electric fire monitoring equipment is DBUS bus system the electrical fire controller (hereinafter referred to as ") as controller, is suitable for the capacity of 128 points or less leakage current and temperature detection system, the controller supports DBUS two bus system, you can easily with the company have DBUS bus interface of electrical fire monitoring detector interconnection of electrical fire monitoring network, through the electrical fire monitoring detector to collect real-time information, leakage current and temperature through controller centralized control management, with three groups of passive external control output, with PC system networking, realize the centralized monitoring management.

Execution standard: GB 14287.1 2005 electric fire monitoring system, the first part: the electrical fire monitoring equipment.

The characteristics of

1. Adopt DBUS two bus communication interface;

2. Fault automatic monitoring and alarm function;

3. Power supply and signal adopts non-polarity design;

4. The built-in large capacity data storage, classified storage failure record, alarm, switch machine records and event records, power can remain;

5. Automatic fault detection and alarm functions;

6. Take three groups of passive programmable external control output.

Technical parameters

1. The test object: residual current, temperature

2. Capacity: 32 points, 64 points

3. The adapter detector: TE1100 series, and TE1202T TE111X series

4. Alarm way: sound and light alarm

5. Alarm output: three groups of passive switch output, a set of DC24V switch output

6. Alarm set value, residual current ma 50 ~ 1000 ma ma step 1

7. The alarm temperature: 70 ℃

8. Rated voltage: AC220V / 50 hz

9. Power consumption: 18 w or less (including equipment and connection monitoring detector)

10. Backup battery: 12 v / 4.5 Ah two

11. A mode of communication: DBUS two bus system

12. The signal transmission distance: 1500 m or less squared (RVV 2 x 1.5 mm)

13. The display mode: Chinese LCD dot matrix

14. The use environment: temperature: 0 ℃ ~ 55 ℃

15. Humidity: 10% ~ 93% RH (gel)

16. The contour size: 400 mm * 320 mm * 115 mm (length x width x height)

17. The product weight: 9.5 kg

18. Installation: wall
