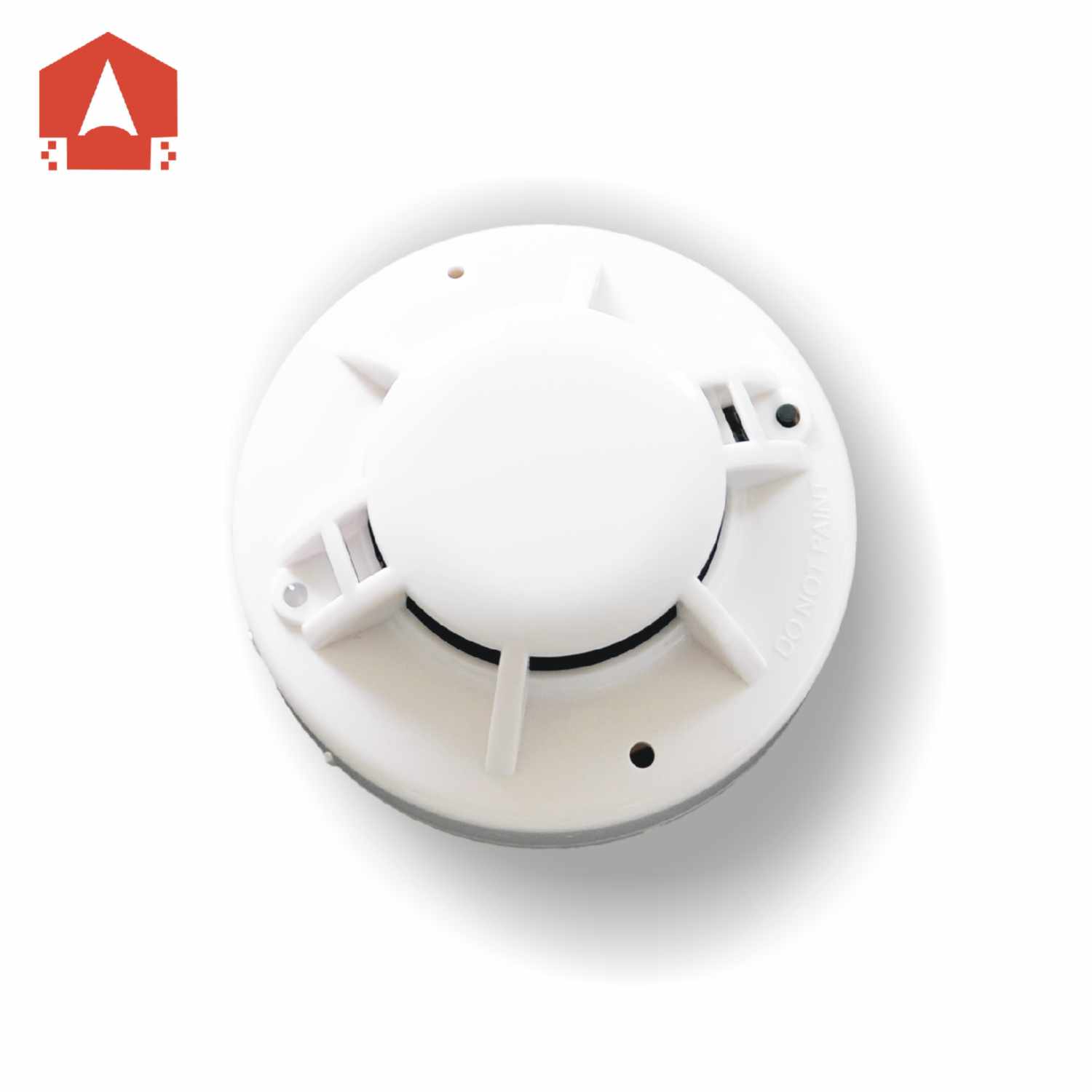

Conventional Smoke & Heat Detector FT103

概述
The detector is a combined smoke and heat detector
with photoelectronic sensor and heat thermistor
together.
This detector is designed to provide open area
protection and to be used with most conventional fire
alarm control panel.
Two LEDs on each detector provide local 360° visible
alarm indication. They flash every 3~5 seconds
indicating that power is applied and the detector is
working properly. The LEDs latch on in alarm. LEDs
will be off when a trouble condition exists indicating
that the detector sensitivity is outside the listed limit.
The detector can be reset only by a momentary
power interruption.
性能特点
2-wire,MCU Conventional Smoke & Heat Detector;Fire Alarm System
Package Size: 593x430x363mm, 100 pcs/1 carton. Gross Weight: 20.6Kg/1 carton. Net Weight: 179g/1 pcs.
性能参数：
Compatible with all the conventional fire alarm
control panel
Unpolarized wire input
Wide range of operating voltages
Unique optical sensing chamber and High
precision electronic thermistor
Built in microprocessor intelligent software
Two LEDs blink standby, provide 360° visibility
Insect-resistant screening
Twist-on mounting base with tamper lock
Drift compensation and smoothing algorithms
     Remote Indicator LED can be connected.
