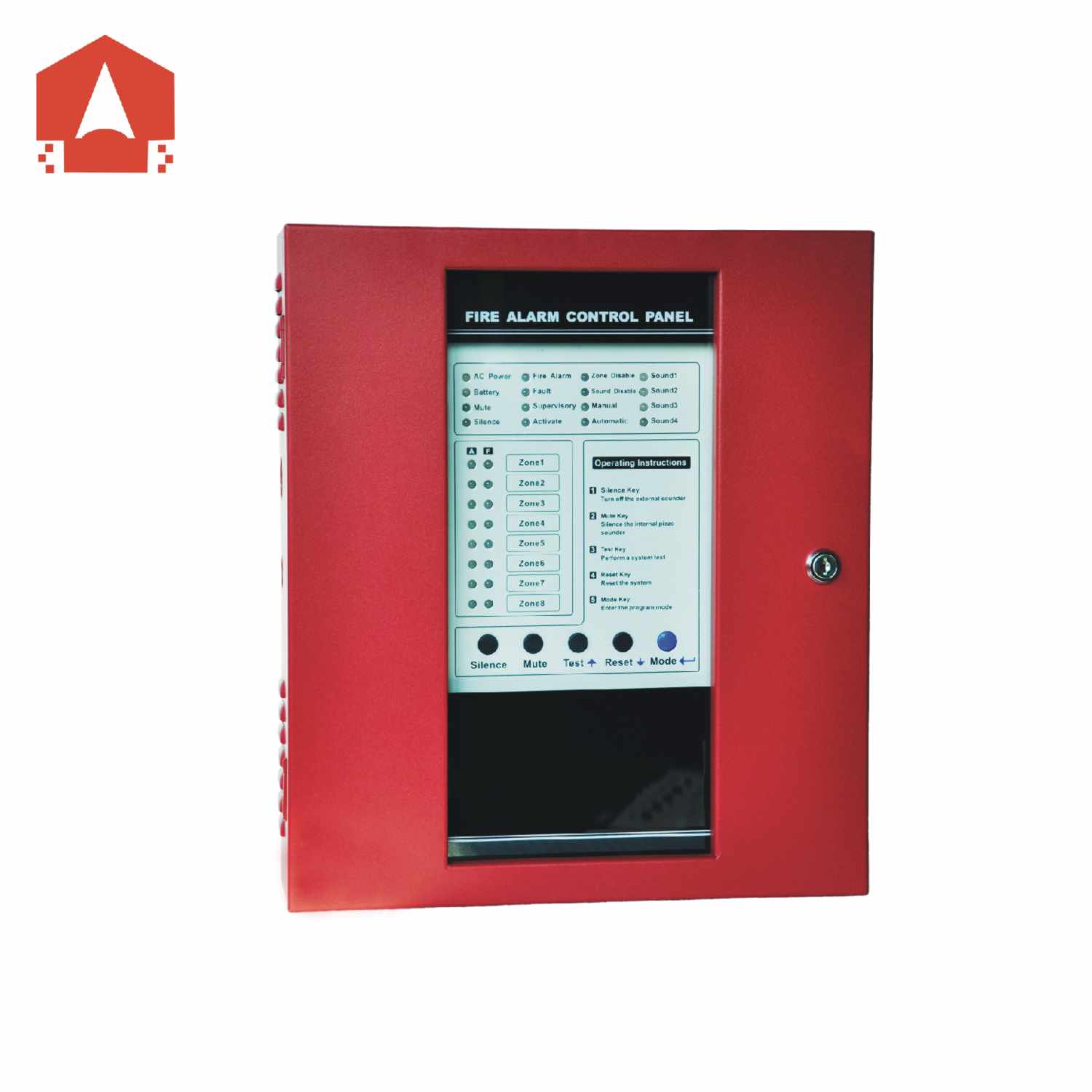

Conventional Fire Alarm Control Panel：CK1008
概述
The CK1000 Series Conventional Fire Alarm Control Panel is a 24 volt, four to sixteen-zone, Class B,
Conventional Fire Alarm Control Panel. Designed
exclusively to meet the latest market requirements
and future ULC codes, the highly cost-effective
CK1000 Series can be used in a variety of low- to
mid-sized applications
性能特点
8 Zone, 2 Sound Output Conventional Fire Alarm Control Panel;Package Size:420x180x170mm, 1 set/1 carton. Gross Weight: 6.8Kg.
性能参数：
Four, Eight, Sixteen Zone Style B (Class B)Initiating Device Circuits (IDCs), All zones
accept two-wire smoke detectors and any
normally-open contact devices.
Two Supervisory Input with DC12V output, ideal
to connect security alarm devices.
Three General Alarm, Trouble and Supervisory,
Form A Relay Output.
One, Two, Four Built-in Sound Output, Style Y
(Class B) Notification Appliance (Signal)
Circuits (NACs), NACs may be programmed:
Silenceable or Non-Silenceable.
3.0 amps of total system power. Resettable
DC24V & Non-resettable DC24V Output.
Zone Input Short Circuit can be set to “Alarm”
or “ Fault” mode.
RS485 Communication Port (optional).
Automatic/Manual mode can be programmed.
Disable/Enable control per Zone (IDC) can be
programmed.
Disable/Enable Sound Output(NACs) can be
programmed.
